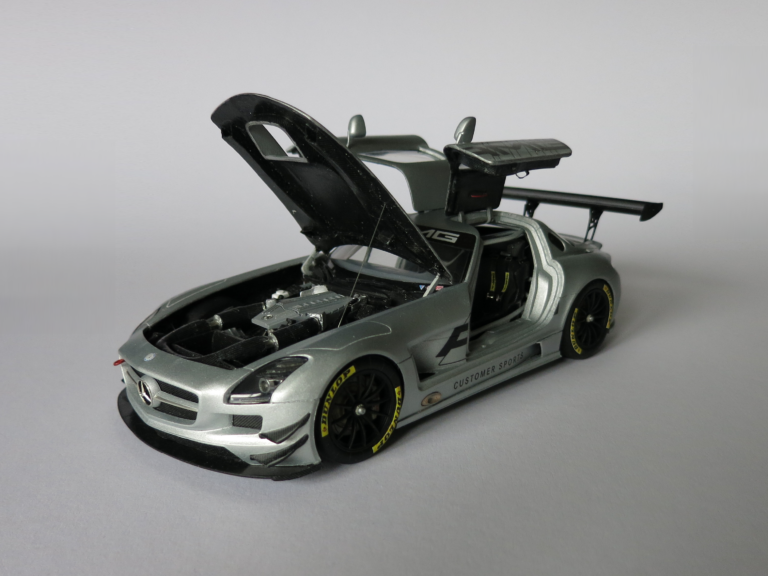

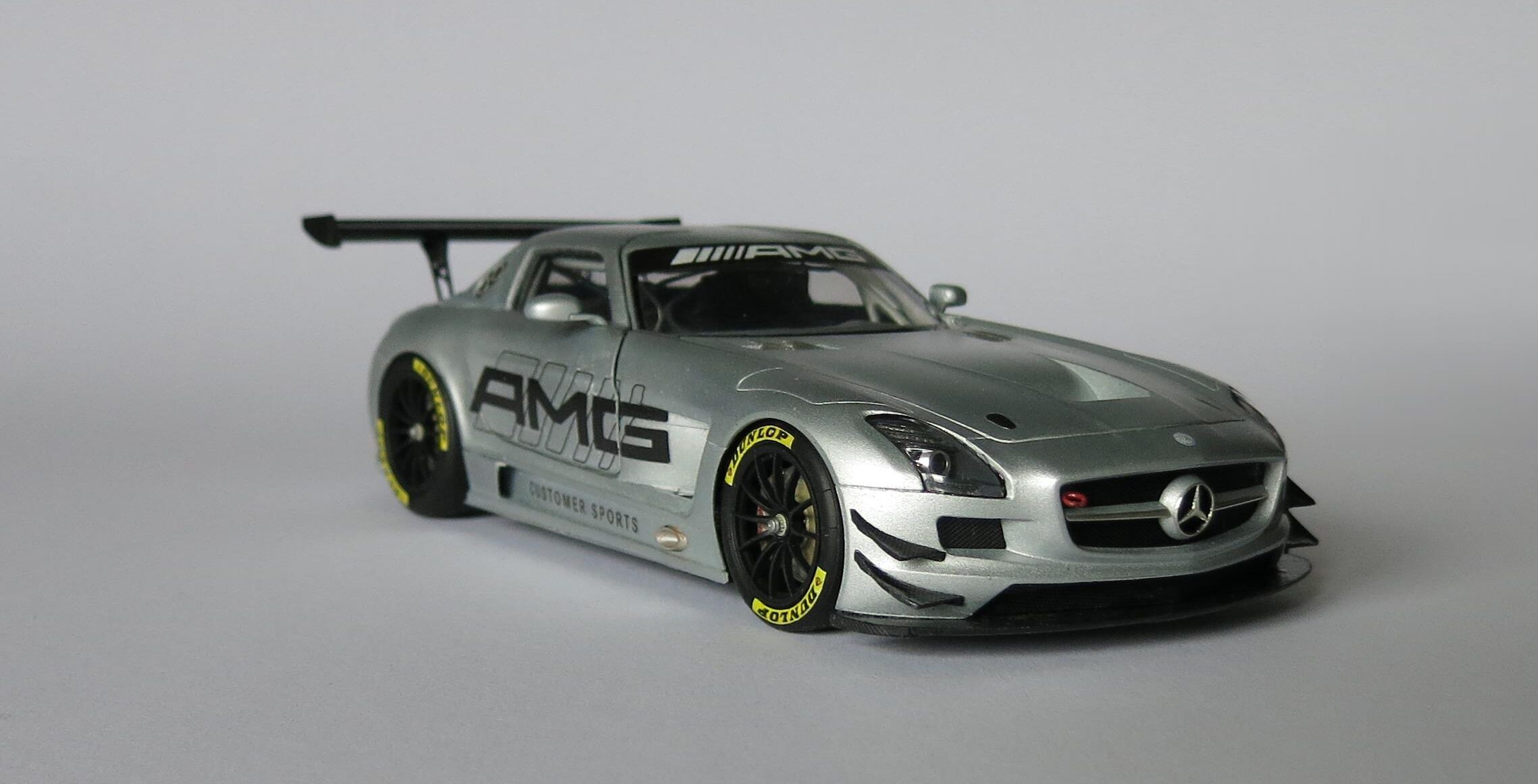

Mercedes-Benz
SLS AMG GT3
Scale:1/24
Kit:Fujimi / Revell
Build time:Mar. 2015 – Dec. 2016
Mercedes-Benz
SLS AMG GT3
Scale:1/24
Kit:Fujimi / Revell
Build time:Mar. 2015 – Dez. 2016
finished
  • Overview
  • Pictures
  • About the original
  • Blog

Base:

1:24 plastic kit SLS GT3 (Fujimi)

+

1:24 plastic kit SLS (Revell)

Livery:

  • Showcar Europapark (2015)
  • Self-printed decals

Engine Compartment:

Original

Model

  • Engine block from Revell
  • Crash-structure completely self-made
  • Front air intake self-made

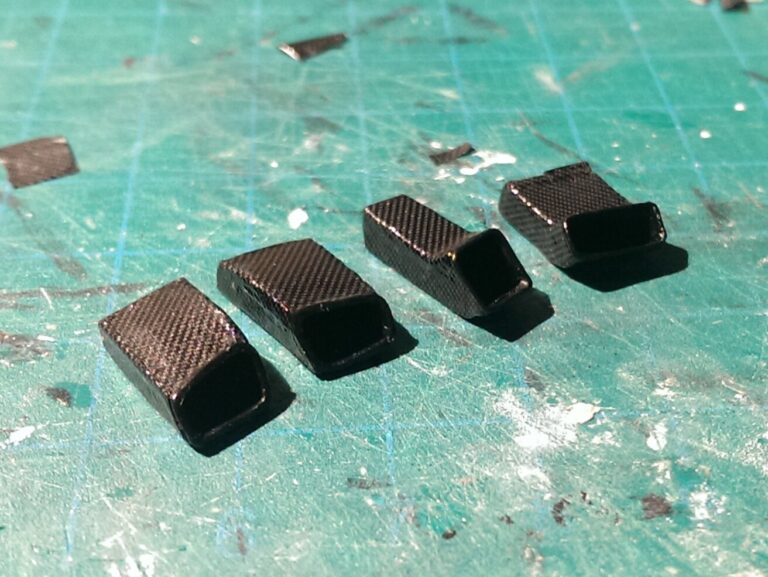

  • Smaller air intakes self-made
  • Details around the engine with self-made components, cables and hoses.

Cockpit:

  • Authentic driver’s seat
  • Completely detailed „passenger side“

Elektronik-Komponenten:

  • Hauptsteuerung inkl. Bluetooth-Empfänger + Batterie-Management verbaut im Heck
  • Anschalten über Magnetrelais ebenfalls im Heck

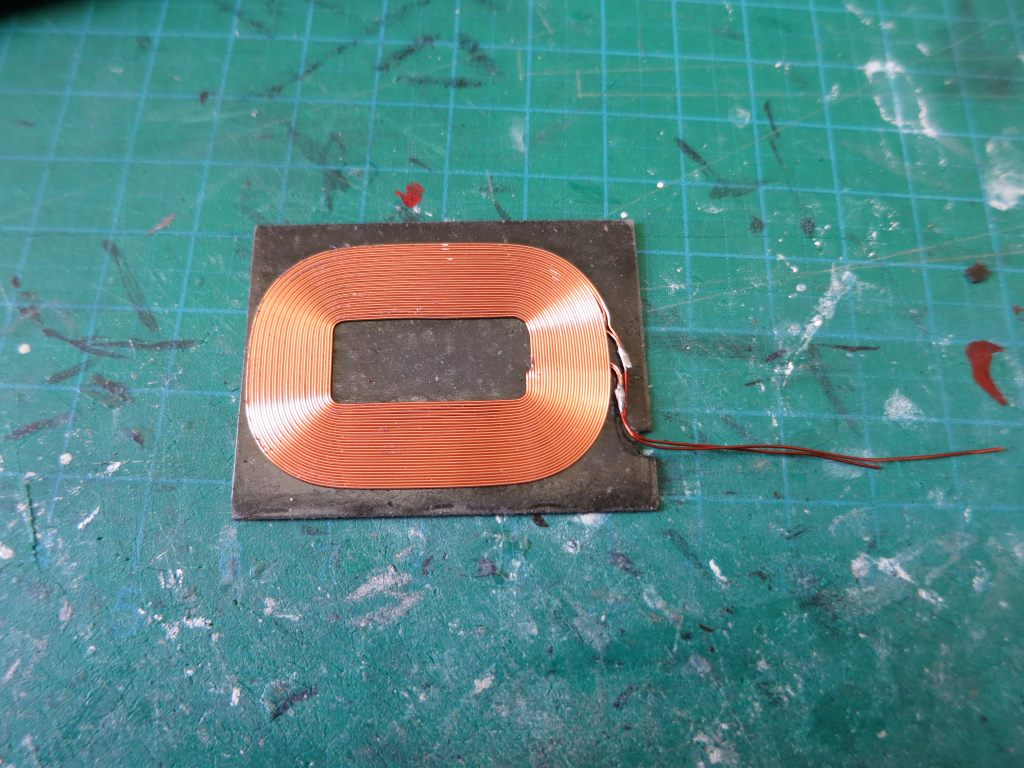

  • Li-Ion Akku + Qi-Spule zum Laden unter der Fahrgastzelle

LED-Beleuchtung:

  • Frontlichter
  • Lichthupe (automatisches Aufblitzen der Frontscheinwerfer
  • Blinker (vorne, hinten)
  • Rücklichter
  • Bremslichter
  • Regenlicht

Hersteller: Mercedes-Benz
Produktionsstart: 2011
Motor: V8 Heckmotor

Der Mercedes-Benz SLS AMG GT3 ist ein nach dem FIA GT3-Reglement aufgebauter Rennwagen auf Basis des Mercedes-Benz SLS AMG.
Die Karosserie des Flügeltürers wurde aerodynamisch modifiziert, sichtbar u.a. an der Frontschürze mit Splitter, der Motorhaube mit zentralem Kühlluftaustritt, den seitlichen Radhausentlüftungen, den Seitenschwellern mit Kühlkanälen für die Hinterachsbremsen, dem glatten Unterboden mit Heckdiffusor und dem verstellbaren Heckflügel. Dadurch wurde der Abtrieb und die Kühlung verbessert. In der C-Säule befinden sich die Tankstutzen für die Schnelltankanlage.
Der Überrollkäfig aus Stahl nach FIA-GT3-Reglement sorgt für eine zusätzliche Versteifung des Aluminium-Spaceframes. Das Fahrzeug ist mit einer fix montierten hochfesten Sicherheitszelle aus KfK und einer Feuerlöschanlage ausgestattet.

SLS GT3 – PART 17 – Tires

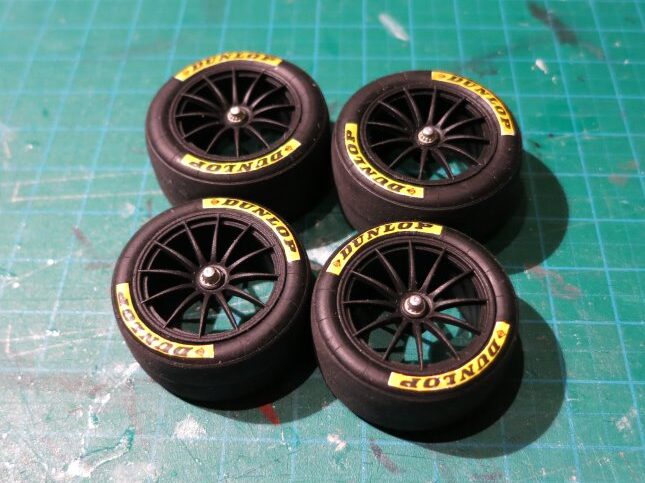

I decided to give the SLS black rims. First, the silvery chrome that was out of the box applied to the rims needed to be stripped away. Oven cleaner is the standart medium to choose for this task and it worked fast and good. You just need to cover the parts with the stuff and after a few minutes the chrome has gone. The rims were then painted with Vallejo Black and clear coated with…

Read More »
Keine Kommentare

SLS GT3 – PART 16 – Body Assembly

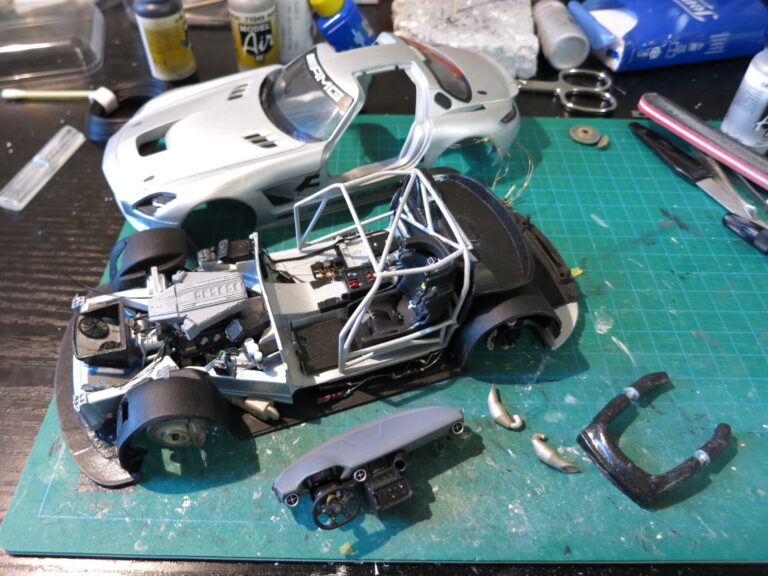

It’s time for the last chapter of this build which was on my table for over 1 1/2 years now! All the planning of the tight fit would now come to a reality check. First, the cockpit with the frame was finally permanently glued on the underbody. There are connectors between the wireless charging coil and the battery pack to the cockpit segment. They were finally stuck together on the right side of the car.…

Read More »
Keine Kommentare

SLS GT3 – PART 15 – Bodywork Details

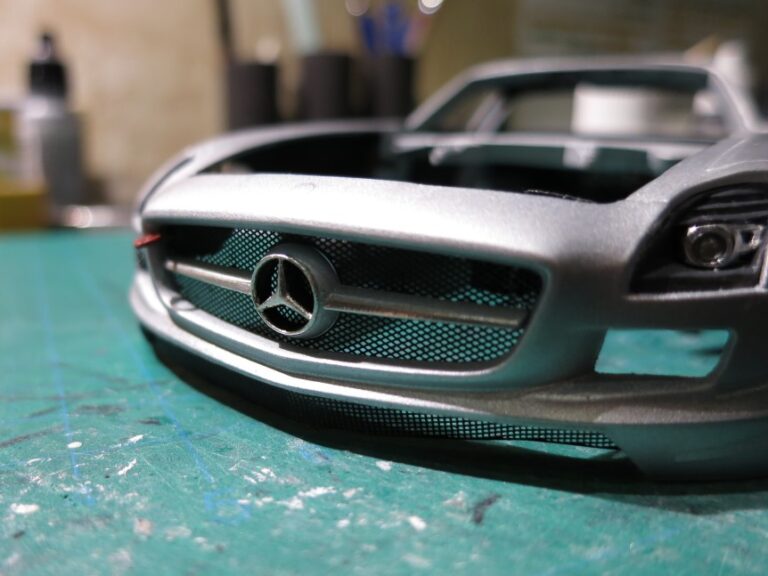

It’s time for the last details concerning the bodywork. Photo etched (PE) mesh from the Hobby Design detail up set was painted black and applied to the front and hood intakes. The small fins on the hood intake were covered with bare metal foil. The same happened to the Mercedes star and the leading edge of the front intake seperator. Speaking of the hood: On the inside you can find channels that direct the air…

Read More »
Keine Kommentare

SLS GT3 – PART 14 – Windows

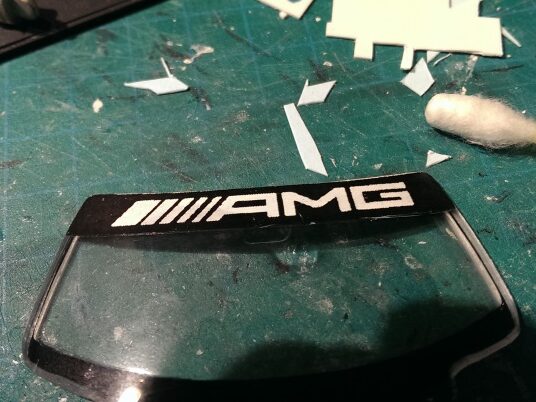

The car has a AMG banner on the top of the windscreen. This sticker was drawn and then twice printed to transparent decal paper (like I did with some previous decals). First, one of the two similar decals was applied, then some white paint (because standart printers can’t print white of course) and then the second decal. This makes the AMG logo visible from the inside and outside alike. The rear window had road car…

Read More »
Keine Kommentare

SLS GT3 – PART 13 – Electronics Integration

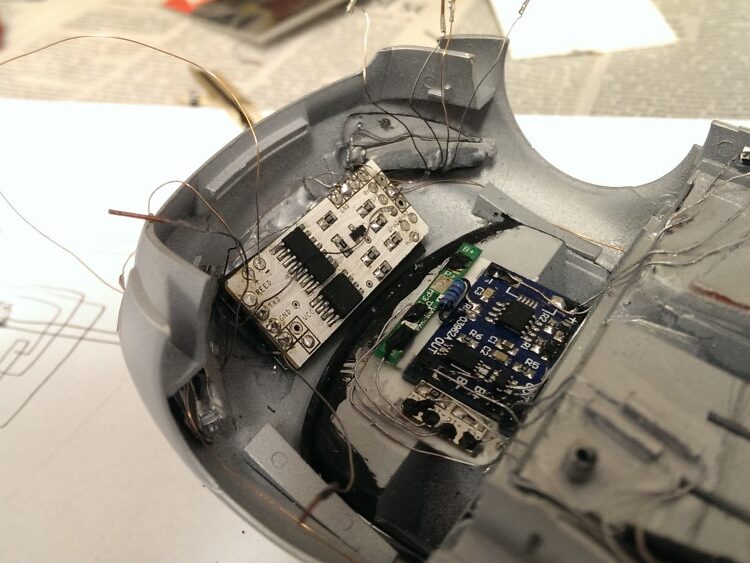

After the body was finally painted, the rest of the electronics could be integrated. The front and rear lights, the main PCB together with the Bluetooth module and the magnetic power switch were glued in. Enamelled coper wires are used to connect everything. These wires are very thin and isolated by a thin enamel coating. This coating can partially be scratched or melted away for soldering. In one of the above pictures you can see…

Read More »
Keine Kommentare

SLS GT3 – PART 12 – Livery

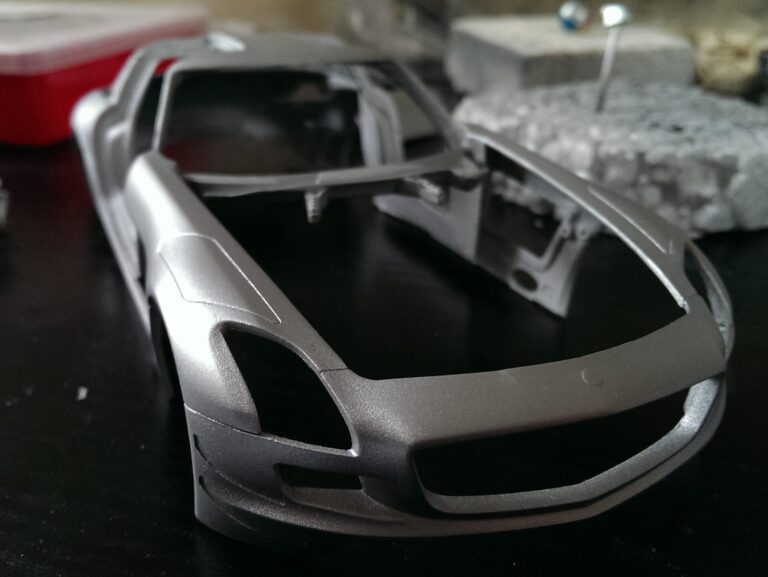

I had a few liveries for the SLS in mind. Most of them were real world racing liveries. But in the end I couldn’t resist the simple but in my opinion very elegant and fitting silver showcar livery I saw at Europapark in 2014! The primer I used was Vallejo’s grey surface primer. I wanted to spray multiple thin layers with sanding inbetween. However the primer had the very strange property to peel off like…

Read More »
Keine Kommentare

SLS GT3 – PART 11 – Engine Details

There are plenty of components, hoses and wires inside the engine compartment. In hours of fine work those were replicated. Again styrene, different metal wires and Milliput were mainly used. – Project Page –

Read More »
Keine Kommentare

SLS GT3 – PART 10 – Air Intakes

Main Intake The big intake at the front has a rather complex shape. It needs to fit around the radiator and beneath the hood. I melted together some flexible parts of drinking straws to make an initial shape. This construction was fixed using epoxy glue on the outside. This also smoothened the shape. Some filling and sanding later I glued on parts of styrene (and smoothened the transition with Milliput) to get the shape at…

Read More »
Keine Kommentare

SLS GT3 – PART 9 – Engine

The engine-block is nearly identical to the roadcar version and was taken straight from the Revell kit to the GT3 car. From the Revell kit I also took some engine parts and the radiator. The integration of the engine into the model now shows that the crash-frame was build correctly. The engine cover was painted grey and the Mercedes star was realized with some bare metal foil applied and carefully cut out. It’s time for…

Read More »
Keine Kommentare
